PS4 HDMI Port Repair Fix

PS4 HDMI Port Repair Fix

PS4 HDMI Port Repair Fix

The HDMI port on the PS4 is a common weak point in this game console. HDMI ports are a very common repair. These ports are very integral to the system since that is what the vast majority of people use to connect it to the TV.


PS4 Faulty HDMI Port Symptoms

Let’s look at some common symptoms to bad ports:

  • If your PS4 turns on and the white light comes on but there is no picture on the TV… also known as the White Light of Death
  • Bent or broken pins inside the HDMI port
  • The TV might say “no signal” or something similar with the console hooked up via the HDMI cable
  • A crooked port or one that looks like it’s been pushed in further than it should be

PS4 HDMI Port Repair Fix

The only good and permanent fix for a bad HDMI port is to replace the entire port. Some of them just have pins that have been pushed back so they no longer make contact with the pins on the cable. Even though many times you can push these pins back, there is no good way to keep them there. The whole port needs to be replaced in order to fix this permanently.

Can I Fix It Myself?

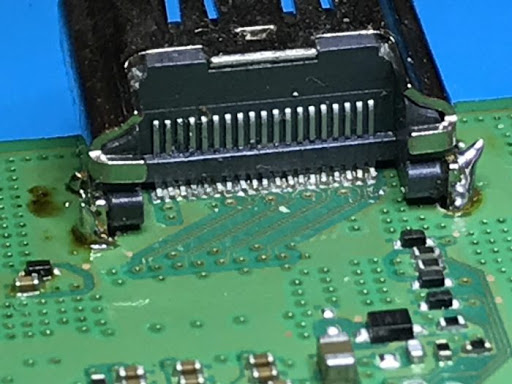

The ports on these consoles can be extremely difficult to repair unless you have expert level soldering and electronics repair skills. They are soldered onto the motherboard with 4 main pins with lots of solders and they also have 19 very small pins that have to be soldered onto solder pads on the motherboard.

Since the only good and permanent fix for a bad HDMI port is to replace the entire port you’ll need to feel confident in your ability to solder the HDMI port correctly. If you don’t feel confident in your electronics repair skills it would be better to have someone with more experience perform the repair.
